As drilling projects become increasingly demanding, drilling fluids companies are looking for mud management systems that combine large storage capacity, rapid deployment, efficient transportation, and flexible site layouts. To meet these requirements, GN Solids Control has developed a 14,000 BBL Rapid Liquid Mud Plant, providing a practical and modular solution for large-scale drilling fluid storage and management.
The GN 14,000 BBL Rapid Liquid Mud Plant is designed for customers who need to establish or expand a centralized mud storage facility while keeping transportation and installation requirements under control. The system adopts a modular containerized concept, allowing the tanks to be transported efficiently and deployed rapidly at the project site.
API-650 Design Standard
The tanks are designed in accordance with API 650, a widely recognized standard for the design and construction of welded storage tanks for the petroleum and related industries. Applying API 650 provides a solid engineering basis for tank structural design, fabrication, inspection, and quality control.
This design approach makes the GN liquid mud plant suitable for demanding drilling fluid applications where tank reliability and structural integrity are essential.

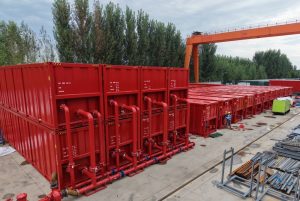

440 BBL per Tank, Containerized for Transportation
Each mud tank has a capacity of approximately 440 BBL and is designed around a 40-foot High Cube container footprint. More importantly, the tanks are equipped with CSC container certification, making them suitable for international transportation as certified containerized units.
This design greatly simplifies logistics compared with conventional oversized mud tanks. The standardized container dimensions allow customers to plan transportation more efficiently and facilitate movement between different drilling locations.

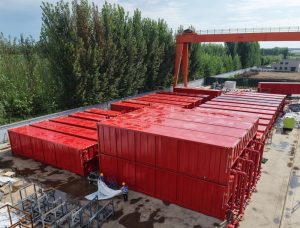

Two-Level Stackable Design
Another major advantage of the GN Rapid Liquid Mud Plant is its two-level stackable configuration.
The tanks can be arranged and stacked in two levels according to site conditions, allowing customers to significantly improve land utilization without sacrificing storage capacity. This feature is particularly valuable for drilling sites where available space is limited.
The modular arrangement also provides greater flexibility during project planning. Customers can configure the tank layout according to actual site requirements and expand the system when additional mud storage capacity is needed.
Built for Rapid Deployment
Combining API-650 design, CSC-certified containerized tanks, 440 BBL capacity per tank, and two-level stackable installation, the GN 14,000 BBL Liquid Mud Plant provides a flexible solution for modern drilling fluid management.
Rather than simply providing a group of storage tanks, GN focuses on creating a complete, transport-friendly, space-efficient mud storage system that can be rapidly deployed in different drilling environments.
With extensive experience in drilling fluid equipment and solids control systems, GN Solids Control continues to develop modular solutions that help drilling fluids companies improve logistics efficiency, maximize site utilization, and build reliable mud management infrastructure.
