Solid Control System for Deep-Well Drilling in Coalfield Geology: GN Solids Control Project in China

n deep drilling projects within coalfield geology, proper solids control in drilling fluids is essential to ensure operational efficiency and environmental protection. GN Solids Control recently delivered an advanced solids control system to a renowned drilling company in China, specifically designed to meet the needs of drilling in coalfield geology.

I

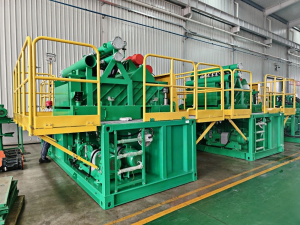

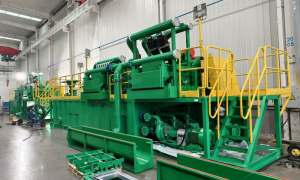

Main Components of the Solids Control System

The delivered system includes a combination of state-of-the-art equipment configured to maximize solids separation and ensure efficient recycling of drilling fluids. The components supplied are:

  1. Four mud tanks:
    These tanks are designed to store and process drilling fluids, ensuring efficient solids separation and handling.
  2. Two GNZS594 shale shakers:
    These high-performance shakers are essential for the primary separation of large solids from the drilling mud, offering exceptional capacity and a robust design suitable for demanding operations.
  3. One GNZS594J-2S12N mud cleaner:
    This equipment combines desanders and desilters for secondary separation, ensuring the removal of fine particles and enhancing the quality of the recycled mud.

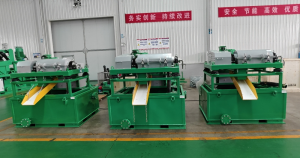

  4. One GNLW452 drilling fluid centrifuge:
    Designed for processing ultra-fine solids, this centrifuge ensures highly efficient separation, making it ideal for deep drilling applications.
  5. Auxiliary equipment:
    This includes sand pumps, mud agitators, hoppers, and other essential components to complete the system and ensure integrated operation.

Advantages of the System

  • Improved operational efficiency: The modular design and high-capacity performance enable faster and more efficient solids management.
  • Environmental compliance: The recovery and reuse of drilling mud minimize waste and environmental impact, meeting strict regulations.
  • Reliability and durability: The equipment is built with high-quality materials to withstand the harsh conditions of deep drilling operations.

Applications in Coalfield Geology

This system is perfectly suited for the needs of deep-well drilling in coalfield geology, where terrain conditions and solids separation requirements are particularly demanding. The Chinese company receiving this system will be able to optimize its operations, reduce operational costs, and increase the sustainability of its projects.

With this delivery, GN Solids Control reaffirms its position as a leader in solids control solutions, supporting the drilling industry with cutting-edge technology and high-quality services.

If you would like to learn more about our systems or need a customized solution, feel free to contact us. At GN Solids Control, we are committed to innovation and the success of our clients.



Recap of GN Solids Control’s Successful Participation at ADIPEC 2024

GN Solids Control is pleased to share the success of our recent participation in ADIPEC 2024, held from November 4 to 7 at the Abu Dhabi National Exhibition Center (ADNEC). As one of the premier events in the oil and gas industry, ADIPEC provided a dynamic platform for us to showcase our latest advancements in solids control technology, designed specifically for drilling applications. This year, we connected with industry leaders, shared our insights, and presented our solutions at Hall 10, Booth #10453.

Highlights of Our Drilling Solids Control Solutions at ADIPEC 2024

During the event, we demonstrated the capabilities of our advanced solids control equipment, which continues to support the demands of both onshore and offshore drilling. Our showcased technologies included:

Shale Shakers

As the first stage in solids control, GN’s shale shakers are built to efficiently remove large solids from drilling fluids. We presented our latest models, optimized for durability and high-capacity separation, minimizing the strain on downstream equipment and enhancing overall operational efficiency.



Mud Cleaners

Combining the capabilities of desanders and desilters, our mud cleaners were a focal point of interest at ADIPEC. These units deliver multi-stage separation, preserving drilling mud quality, reducing the need for additives, and maintaining optimal mud properties.



High-Speed Decanter Centrifuges

Our decanter centrifuges captured attention for their precision and effectiveness in separating ultra-fine solids from drilling fluids. By enhancing mud quality and reducing disposal costs, these centrifuges help achieve efficient and environmentally responsible drilling operations.



Cuttings Dryers

GN Solids Control’s cuttings dryers are designed to minimize waste by reducing the liquid content in drilling cuttings, contributing to sustainability and regulatory compliance. Our advanced models demonstrated their capability to meet even the strictest environmental standards.



Comprehensive Waste Management Solutions

We also presented our comprehensive waste management solutions tailored to the needs of drilling operations. These systems offer efficient ways to handle drill cuttings and waste streams, promoting sustainable practices within the industry.



Feedback and Key Takeaways

The response from ADIPEC attendees was overwhelmingly positive. Visitors were impressed with the versatility and adaptability of our systems for diverse drilling conditions. Our team had the opportunity to engage in valuable discussions, share best practices, and gain insights into the evolving needs of the drilling industry. The event reinforced our commitment to innovation, reliability, and sustainability in solids control.



Moving Forward with GN Solids Control

Our presence at ADIPEC 2024 reaffirmed GN Solids Control‘s position as a trusted provider of solids control solutions for drilling. We look forward to building on these connections and continuing to deliver high-quality equipment and expertise to meet the complex demands of the global oil and gas industry.



If you missed us at ADIPEC or would like to learn more about our solids control solutions, we invite you to reach out to our team. Together, we can explore how GN Solids Control can enhance your drilling operations with efficient, cost-effective, and environmentally responsible solutions.

GN Vacuum Pump GNSP-40B Applications in the Middle East

Introduction

As industrialization accelerates in the Middle East, the demand for environmental protection and resource recovery has been growing steadily. The need for efficient and reliable sludge handling equipment has become increasingly urgent, especially for vacuum pumps. The GN Vacuum Pump has become an essential solution in the Middle East’s sludge treatment industry, widely used in wastewater treatment plants, petrochemical companies, and other heavy industries.

Overview of the GN Vacuum Pump GNSP-40B

The GN Vacuum Pump GNSP-40B is a highly efficient pump designed specifically for sludge handling, capable of operating under high loads and in harsh conditions. Its core technology is based on vacuum suction, which allows for the quick extraction and transportation of sludge from sewage treatment tanks to subsequent treatment stages.

When comparing GN vacuum pumps to globally renowned vacuum pumps from brands like Edwards, Pfeiffer, and Leybold, several key advantages arise. The pumps are essential for various industrial applications.

Advantages of GN Vacuum Pump GNSP-40B

Cost-Effectiveness
GN vacuum pumps are generally more affordable than high-end international brands, making them a cost-effective solution, especially for small to medium-sized businesses or for applications where budget constraints are a factor. By offering competitive prices, GN allows companies to access quality vacuum technology without a large financial commitment.

Simplicity in Design
GN vacuum pumps often have straightforward designs, which can make them easier to operate and maintain. While world-renowned brands may have more complex features, GN pumps prioritize functionality and accessibility, which can be an advantage for users who do not need highly specialized features.



Application Cases of GN VACUUM PUMP GNSP-40B in the Middle East

Dubai Wastewater Treatment Project

In a large-scale wastewater treatment project in Dubai, UAE, the GNSP-40B vacuum pump was successfully used to extract and transport both municipal and industrial sludge. Due to the hot climate and the presence of oil and chemical sludge in the wastewater, the GNSP-40B pump’s corrosion resistance and high-temperature tolerance made it the preferred choice. The pump’s efficient operation significantly improved sludge treatment efficiency, reduced maintenance needs, and lowered operating costs.

Qatar Wastewater Treatment Plant Upgrade

In an upgrade project at a wastewater treatment plant in Qatar, the GNSP-40B vacuum pump was widely used for sludge extraction from wastewater treatment ponds. The project aimed to increase wastewater reuse and reduce dependence on natural water sources. The high performance of the GNSP-40B not only improved the speed of sludge extraction but also ensured the stability of the sludge transport process, contributing significantly to the success of the project.

The feedback from the clients

  • High Efficiency: The GNSP-40B vacuum pump delivers excellent performance under continuous high-load operation, meeting the Middle East’s demand for efficient sludge treatment.
  • Durability: The pump is built with high-quality, corrosion-resistant materials and sealing technologies, ensuring long-term stability in harsh environments and minimizing maintenance costs.
  • Energy Efficiency: The GNSP-40B is designed with energy savings in mind, ensuring that it delivers high sludge handling capacity while minimizing energy consumption, which is crucial in the energy-sensitive Middle East market.

Conclusion

The GN Vacuum Pump (GNSP-40B) has proven to be an excellent solution for sludge handling in the Middle East, offering superior performance in demanding conditions. By providing efficient, durable, and energy-saving solutions, the GNSP-40B has significantly improved wastewater treatment processes in the region.

Mini Shale Shaker and Decanter Centrifuge for International Diamond Core Drilling

In the world of mineral exploration, diamond core drilling stands out as one of the most effective methods to retrieve precise rock samples from deep within the earth. However, this drilling technique generates significant amounts of drill cuttings and slurry that must be managed to maintain efficient drilling performance and reduce environmental impact. This is where compact and efficient equipment like mini shale shakers and decanter centrifuges become essential tools, offering streamlined solids control solutions specifically designed to handle the challenges of diamond core drilling.



The Role of Mini Shale Shakers in Diamond Core Drilling

Shale shakers are the first line of defense in solids control, designed to separate large particles and solids from drilling fluids. In diamond core drilling, the use of a mini shale shaker is particularly advantageous due to its compact size and high efficiency. These mini shakers are engineered to process smaller volumes of drilling mud typical in mineral exploration, making them ideal for remote sites or narrow drilling setups where space and power may be limited.

Key benefits of mini shale shakers in diamond core drilling include:



Space Efficiency: Mini shakers are compact and easily transportable, making them suitable for the constrained environments often encountered in exploration projects.

High Separation Efficiency: They remove larger drill cuttings quickly, ensuring cleaner mud recirculation and reducing the load on subsequent separation equipment.

Reduced Environmental Impact: By effectively separating solids, they minimize waste disposal needs, making the operation more environmentally friendly.

Decanter Centrifuges for Fine Solids Control

Following the shale shaker, decanter centrifuges play a crucial role in separating finer solids from drilling fluids, further improving the quality of recycled mud. Decanter centrifuges are high-speed equipment designed to separate even the smallest particles from the slurry, thus maintaining optimal fluid properties for drilling operations. In the context of diamond core drilling, decanter centrifuges offer a practical and effective solution for handling the fine particles that shale shakers cannot capture.

The decanter centrifuges, such as the GN Solids Control models shown in the table above, offer several advantages:



High G-Force for Fine Separation: Models like the GNLW223D and GNLW224FT-VFD provide high G-forces (up to 3200G) to effectively separate fine particles, ensuring that the drilling mud maintains its viscosity and lubricating properties.

Variable Bowl Speed: The GNLW224FT-VFD offers variable speed control, allowing operators to adjust the centrifuge settings based on specific drilling conditions and achieve the best solids-liquid separation.

Durable and Efficient Design: With robust motors and durable materials, these centrifuges are built to withstand challenging drilling environments while delivering consistent performance.

Comparing GN Solids Control Decanter Centrifuges

The GN Solids Control mini decanter centrifuges, such as the GNLW223D and GNLW224FT-VFD, are particularly well-suited for mineral exploration projects like diamond core drilling. Here’s a comparison of some key specifications:



Specification      GNLW223D         GNLW224FT-VFD

Max Capacity     130 l/min             130 l/min

Effective Capacity            100 l/min             100 l/min

Bowl Diameter  9 inches (220 mm)           9 inches (220 mm)

Bowl Length       26.4 inches (670 mm)     36.4 inches (924 mm)

Max Bowl Speed              4500 RPM            5099 RPM

Typical G Force  1777G   2492G

Main Motor        11 KW (15 HP)    11 KW (15 HP)

Pump Size           N/A        5.5 KW (7.5 HP)

Gearbox Torque               500 N·m               1400 N·m

The GNLW224FT-VFD model, with its higher max bowl speed and variable frequency drive (VFD), offers enhanced flexibility and control over separation processes, making it ideal for adapting to different drilling conditions. In contrast, the GNLW223D provides a reliable, straightforward option for standard drilling scenarios where variable speed control is not necessary.



Advantages of Using GN Solids Control Equipment in Diamond Core Drilling

Implementing mini shale shakers and decanter centrifuges in diamond core drilling operations can lead to several operational improvements:



Enhanced Fluid Quality: By removing solids at various stages, the drilling fluid maintains its desired properties, which is essential for efficient drilling and reduced wear on drill bits.

Operational Cost Savings: Effective solids control reduces the frequency of mud replacement and minimizes the disposal costs of drilling waste.

Environmental Compliance: In many regions, environmental regulations mandate proper management of drilling fluids and waste. GN Solids Control’s solutions help operators comply with these standards by reducing waste volume and facilitating safer disposal practices.

In diamond core drilling, where precision and efficiency are paramount, the right solids control equipment can make a significant difference. GN Solids Control’s mini shale shakers and decanter centrifuges offer a compact yet powerful solution for managing drill cuttings and maintaining fluid quality. By incorporating these systems into exploration projects, companies can improve drilling performance, lower environmental impact, and reduce operational costs, paving the way for more sustainable and efficient mineral exploration.

GN Solids Control’s Compact Shaker and Centrifuge System Reaches International Core Drilling Clients

At GN Solids Control, we understand the challenges faced by the international core drilling industry, where efficient solid-liquid separation is paramount. Recently, we successfully delivered two of our most reliable models, the GNZS752 Mini Shale Shaker and the GNLW223 Decanter Centrifuge, to a core drilling customer overseas. These models, specifically designed for handling core drilling fluid and solids separation, are proving to be a game-changer for this sector, ensuring optimal performance and minimal footprint.

Meeting Core Drilling Challenges with the GNZS752 Mini Shale Shaker

In core drilling applications, fluid management plays a crucial role in improving drilling efficiency and prolonging equipment life. One of the core pieces of equipment we provided is the GNZS752 Mini Shale Shaker, a versatile and compact unit specifically designed to cater to the needs of core drilling clients.



Key Features of the GNZS752 Shale Shaker:



Compact Size: With limited space often available on core drilling sites, the GNZS752 is specifically engineered with a small footprint, allowing it to fit seamlessly into confined workspaces.

High Efficiency: The shaker uses two high-quality vibrating motors to generate robust linear motion, efficiently removing larger solids from drilling fluid and ensuring smooth operations.

Simple Maintenance: We know that core drilling sites are often remote, making low-maintenance equipment essential. The GNZS752’s design focuses on easy component access and minimal maintenance needs, reducing downtime and operational interruptions.

Durable Construction: Built with stainless steel and anti-corrosion materials, the shaker can withstand harsh drilling environments, ensuring long service life and consistent performance.

The GNZS752 Mini Shale Shaker can be used independently or as the first stage in a multi-tier solids control system, efficiently removing coarse particles and preparing the fluid for further processing by downstream equipment.



GNLW223 Decanter Centrifuge: Precision in Solids-Liquid Separation

Following the shale shaker, the GNLW223 Decanter Centrifuge handles the fine solids removal with exceptional precision, maintaining optimal drilling fluid quality in challenging core drilling operations. This decanter centrifuge is ideal for compact drilling setups due to its small size and high efficiency, which is tailored to core drilling requirements.

Highlights of the GNLW223 Decanter Centrifuge:



High G-Force Separation: Capable of reaching high G-forces, the GNLW223 effectively separates fine particles, typically smaller than 5 microns, from drilling fluid. This is critical for maintaining the quality and consistency of the drilling fluid.

Energy Efficient: The centrifuge’s design maximizes efficiency, using advanced engineering to reduce energy consumption while maintaining high throughput, which is especially important in remote core drilling locations where power supply may be limited.

Durable Bowl and Scroll: Constructed with wear-resistant materials, including a stainless-steel bowl and ceramic scroll tips, this model is designed for durability under harsh conditions.

Adaptability and Control: With variable frequency drives, the GNLW223 offers flexible operating speeds, allowing operators to adjust the rotation speed and achieve the desired separation performance based on changing fluid properties.

Benefits for International Core Drilling Clients

Our GNZS752 Mini Shale Shaker and GNLW223 Decanter Centrifuge system offers multiple advantages for international core drilling customers:

Cost-Efficiency: Efficient solids control translates to lower mud and fluid costs, as clean fluid can be recycled and reused, reducing overall operational expenses.

Enhanced Operational Efficiency: Efficient solids removal leads to fewer equipment issues, minimal downtime, and more stable drilling operations.

Environmentally Friendly: Reduced solid waste and better fluid recovery help minimize the environmental footprint of core drilling operations, which is increasingly important for clients around the globe.

With a proven track record of reliability and performance, these GN Solids Control models are ideal solutions for core drilling operations seeking to enhance their solids control and drilling fluid management. Our international team is dedicated to providing core drilling clients with robust equipment, continuous support, and a commitment to innovation that meets their evolving needs.

GN Solids Control’s GNZS752 Mini Shale Shaker and GNLW223 Decanter Centrifuge not only meet but exceed the expectations of core drilling clients worldwide. As we continue to expand our international footprint, GN Solids Control remains a trusted partner in solids control technology, delivering solutions that drive efficiency and productivity in the drilling industry.

Two Sets of GN Oil Sludge Treatment System for Overseas Client

Introduction

Oil sludge, a combination of oil, water, and solids, is tough to manage and poses a significant environmental risk. The GNOST-05C oil sludge treatment system, which is both efficient and eco-friendly, offers a new approach to sludge treatment on a global scale.

Oil Sludge Treatment Composition

The GNOST-05C oil sludge treatment system comprises four key components:

  1. Pre-mixing Tank Module: This is the initial stage where oil sludge is thoroughly mixed with specific chemicals to prepare it for effective separation.
  2. Chemical Dosing Module: Depending on the characteristics of the sludge, chemicals are accurately dosed to enhance separation efficiency.
  3. Three-phase Decanter CentrifugeModule: Leveraging strong centrifugal force, this module separates solids and liquids in the sludge into three distinct phases.
  4. Three-phase Disc Separation MachineModule: Following the decanter centrifuge separation, this module further divides the liquids of varying densities, ensuring a comprehensive separation.

What You Can Get From The System

Efficient oil sludge treatment is crucial not only for resource recycling but also for safeguarding the environment. By utilizing the GNOST-05C oil sludge treatment system, we can:

  1. Recycle Oil and Water: The extracted oil can be sold to refineries, and the reclaimed water can be reused for thermal washing, facilitating resource conservation.
  2. Cost-effective Solid Waste Management: The solids, with reduced oil content below 2%, can be treated via thermal desorption or biodegradation, enabling safe disposal.
  3. Environmental Protection: By minimizing the environmental pollution caused by oil sludge, we contribute to sustainable development.

Distinct Features of this System

Synergistic Benefits of Combining Three-phase Decanter Centrifuge and Three-phase Disc Separation Machine

The integration of the three-phase decanter centrifuge and the three-phase disc separation machine offers remarkable advantages in material treatment, significantly boosting overall separation efficiency. Here’s a closer look at how these two technologies complement each other:

  1. Enhanced Separation Efficiency:
    1. Decanter Centrifuge (Separation Factor: ~3000G): This machine excels in handling materials with higher solid content. It performs a preliminary separation, reducing the complexity of the material stream.
    2. Disc Separation Machine (Separation Factor: ~12000G): Thanks to its higher separation factor, this machine can more effectively differentiate between liquids of varying densities. The resulting liquid phase is notably clearer.
  2. Sequential Processing for Optimal Results:
    1. In practical applications, materials typically undergo an initial separation process in the decanter centrifuge. This step helps to prepare the material for the next phase by reducing the solid content and simplifying the mixture.
    2. Subsequently, the pre-treated material is fed into the disc separation machine for further refinement. This sequential processing ensures that each machine operates within its optimal range, maximizing the overall separation effect.

By leveraging the strengths of both technologies, the combined system achieves a level of separation that would be difficult to attain with either machine alone. This synergy not only improves the quality of the separated components but also enhances overall operational efficiency and cost-effectiveness.



GN Screw Conveyor and Solids Control Equipment For Middle East Drilling Company

Introduction

Recently,GN Solids Control has successfully provided a complete range of solids control equipment to a reputable drilling company in the Middle East. This equipment, which comprises GNSC14-48 Screw Conveyors, GNZS-594 Shale Shakers, and GNZS594-2S16N Mud Cleaners, is specifically engineered to boost both the efficiency and safety of drilling activities in the area.

GN Solids Control System Layout

The GNSC14-48 Screw Conveyors are designed to collect drill cuttings from solid control equipment and transport them for additional processing, thereby maintaining a clean and efficient drilling environment. These conveyors boast a modular 12-foot design for simple replacement, and are made with wear-resistant materials to prolong their lifespan. The U-Channel design incorporates protective guards and frames, which not only strengthens the conveyor but also enhances the safety of the operators.

The GNZS-594 Shale Shakers, which serve as the primary solid control equipment in oil drilling operations, consist of a base, screen box, vibration springs, vibration motors, and an inlet shaker tank. Renowned for their high vibration intensity, expansive screening area, adjustable screen box angle, compact design, and outstanding performance, these shakers are highly regarded in the industry. GN Solids Control provides customized options, including double or triplex shale shakers, to tailor to the unique needs of each project.

The GNZS594-2S16N Mud Cleaners function as the second and third stages of solid control equipment, combining desander and desilter hydrocyclones with a bottom flow shale shaker. Due to their compact design, space efficiency, and powerful performance, these cleaners are well-suited for secondary and tertiary solid control tasks in drilling mud systems.

Prospects for GN Solids Control

GN Solids Control is dedicated to supplying high-quality solid control separation equipment and systems worldwide. With a significant footprint in the Middle East, the company has forged partnerships with clients from diverse countries such as the United Arab Emirates, Saudi Arabia, the United Kingdom, Russia, Indonesia, and others.



Dewatering centrifuge unit for drilling mud, tailored for European client.

Introduction

Recently, GN Solids Control, a leading provider of solids control and mud dewatering solutions, has successfully delivered and installed two sets of advanced drilling mud dewatering decanter centrifuge systems to a satisfied European client.

Key Features about Dewatering Centrifuge

Each system has been meticulously designed and engineered, incorporating a GNLW364FT decanter centrifuge, a comprehensive chemical dosing system, and a robust mud feed screw pump. All components are cleverly housed within standard containers, enhancing transportation efficiency and facilitating straightforward installation. This innovative packaging solution not only optimizes the maintainability and protection of the equipment but also guarantees a prolonged service life and minimizes downtime, ensuring optimal performance and reliability for our European client.

The T-series dehydration/concentration decanter centrifuges, which were selected by our esteemed European client, are renowned in the industry for their robust separation capabilities and versatility. Featuring a drum diameter of 14 inches, a length of 59.5 inches, a maximum speed of 3964 RPM, and an impressive separation factor of up to 3200G, these centrifuges are ideally tailored for processing materials with large particles, significant solid-liquid density differences, low viscosity, and high concentration levels. Their exceptional performance makes them the perfect choice for applications demanding high treatment capacity and dryness, such as drilling mud. Our client can therefore expect optimal results and efficiency in their drilling mud dewatering processes.

Other Applications by Dewatering Centrifuge

Beyond their application in drilling mud, GN Solids Control’s T-series decanter centrifuges boast a wide range of industrial uses. They are utilized for the separation and dehydration of environmental sewage, oily sludge, cutting fluids, sand washing water, ore washing water, and numerous other materials. Their adaptability further extends to processes such as Chinese herbal plant extraction, as well as the clarification and concentration of salt crystals. This versatility underscores GN Solids Control’s dedication to delivering comprehensive solutions tailored to the unique needs of various industries.









GN Double Deck Shale Shaker and Cutting Dryer Ready to Serve African Drilling Company

GN Solids Control is excited to introduce our state-of-the-art GN Double Deck Shale Shaker and Cutting Dryer, which have been meticulously designed and engineered to meet the rigorous demands of the African drilling industry. With our extensive experience and expertise in the field, we are confident that these advanced machines will provide African drilling companies with unmatched performance, reliability, and efficiency.

Introduction to GN Double Deck Shale Shaker

GNZS596 series Double Deck shale shaker by GN Solids Control is widely used in various industries such as piling, tunnel boring machines (TBM), large oil and gas drilling rigs, and trench-less projects, as well as for multi-phase separation. With a processing capacity of up to 140 cubic meters per hour, it features two 2.2 kW vibrating motors for effective screening. The upper deck has a screening area of 1.36 square meters, while the lower deck has 2.73 square meters. The deck angle can be adjusted from -1° to +5° to meet different screening requirements. Its compact design makes it easy to install and is suitable for those who prioritize efficiency and space utilization.

Introduction to GN Vertical Cutting Dryer

For African customers, GN Solids Control provides the GNCD930G series vertical cutting dryer. These dryers can process up to 50 tons of cuttings per hour and reduce the oil content to below 5%, which greatly improves resource reuse. They employ centrifugal force technology to dry cuttings from oil-based and synthetic-based drilling mud. All major rotating parts have undergone dynamic balance testing to ensure stability and minimize operational noise.

GN Solids Control offers a vertical cutting dryer with a speed of 900RPM and a separation G Force of 420G, which meets standard usage requirements. Furthermore, customers can opt for frequency conversion control to adjust the speed based on their specific needs for optimal results.

Pictures below present the effectiveness of oil recovery.

Innovating the HDD Industry: Efficient Mud Mixing and Intelligent Recycling Integrated System

Introduction

Within the realm of trench-less construction, the efficient management and recycling of drilling mud holds paramount importance for bolstering both construction efficiency and environmental stewardship. GN Solids Control is glad to introduce the GNMS-500K mud recycling system, a cutting-edge mud recycling system tailored exclusively for directional drilling enterprises, it promises to usher in a new era of groundbreaking construction.

Core Attributes of the GNMS-500K Mud Recycling System:

  1. Unparalleled Mixing Efficiency: Boasting a mixing capacity of 20 cubic meters per hour, our system effortlessly fulfills the demands of even the most ambitious projects.
  2. Universal Applicability: Versatile across a wide range of projects, the GNMS-500K seamlessly integrates with Horizontal Directional Drilling (HDD), Bored Pile endeavors, Micro Tunnel Boring Machines (TBM), Diamond Drilling, Water Well Drilling, and numerous other applications.
  3. Flexible Modular Construction: Comprising a sophisticated mud treating system, centrifugal pump, mud mixing hopper, and mud cleaner, this system offers unparalleled customization options, including the integration of skid-mounted, hydraulic jack-up, or trailer-mounted tanks to suit your specific needs.
  4. Rapid Deployment Capability: As a pioneer in the field, GN has designed the GNMS-500K with a fast hydraulic jack-up mud system, guaranteeing swift setup and operational readiness.
  5. Compact & Transport-Friendly Design: Engineered for hassle-free inland transportation in most countries, the GNMS-500K eliminates the need to detach equipment from the tank. Disassembling the equipment atop the tank allows for a seamless fit into a standard ISO container, facilitating seamless sea freight transportation.

GN Mud Recycling System Series

GN Solids Control manufactures 2 main series of mud recycling systems: K series are economy mud recycling systems and B series are self contained mud recycling systems. GN K series are largely used in mud cleaning and recycling without mud storage and mixing function, an extra storage tank and a mixing unit are needed. GN B series mud system integrated with the function of mud recycling, mud storage and mud mixing, it meet the demands of middle to large drilling rigs with excellent multiple stages separation feature.
